Generac provides tailor-made Microgrid Solutions for Every Business Need
From generators, to transfer switches, to mobile power, Wolter can equip your facility with energy solutions from Generac. Contact us today to learn how you can manage all of your industrial energy needs from one easy to use system.
- Manufacturing: Ensure continuous production with reliable backup power.
- Healthcare: Protect critical operations and sensitive equipment with seamless energy management.
- Commercial: Optimize energy costs and boost operational efficiency while reducing your carbon footprint.
- EV Charging: Power your electric vehicle fleets with reliable and scalable energy solutions.

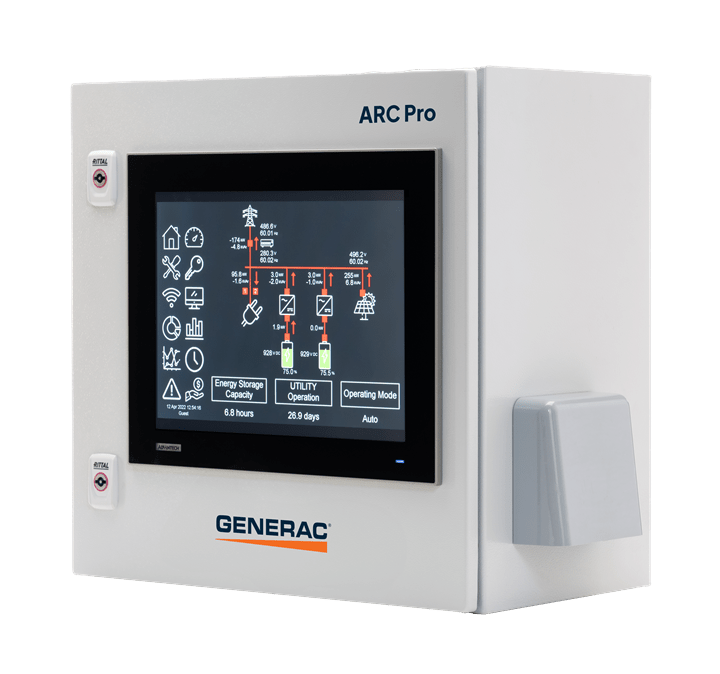

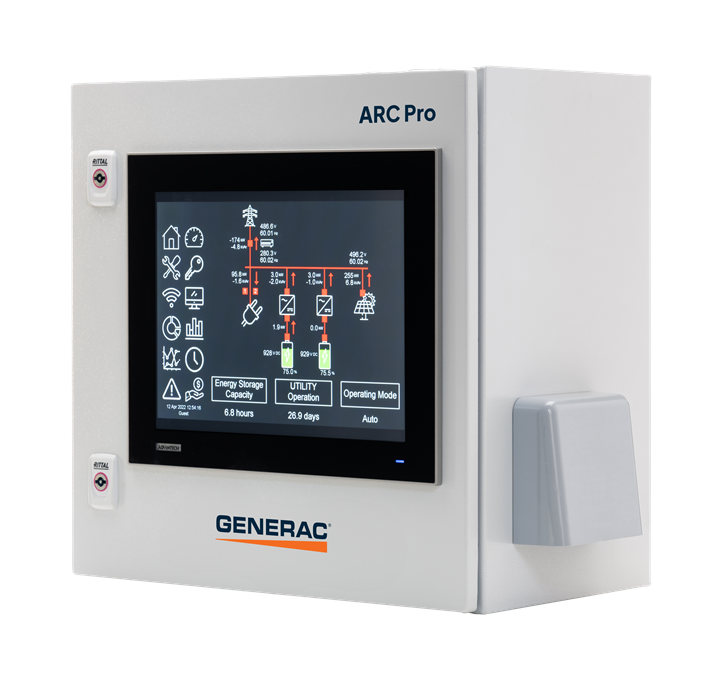

ARC Pro Microgrid Controller
Connect resources, control with confidence
The ARC Pro Cabinet is the most capable and durable hardware option for running the ARC Software.
- Active Cooling allows for installation in more extreme environments
- Touchscreen increases ease of operation and on-site access
Specifications
- Model: ARC PRO
- Voltage: 100 – 240V AC Single Phase
- Frequency: 50/60 Hz
- Current Requirement: 2A @ 120V AC
- Mounting Style: Wall Mount
- Certification: UL 508A

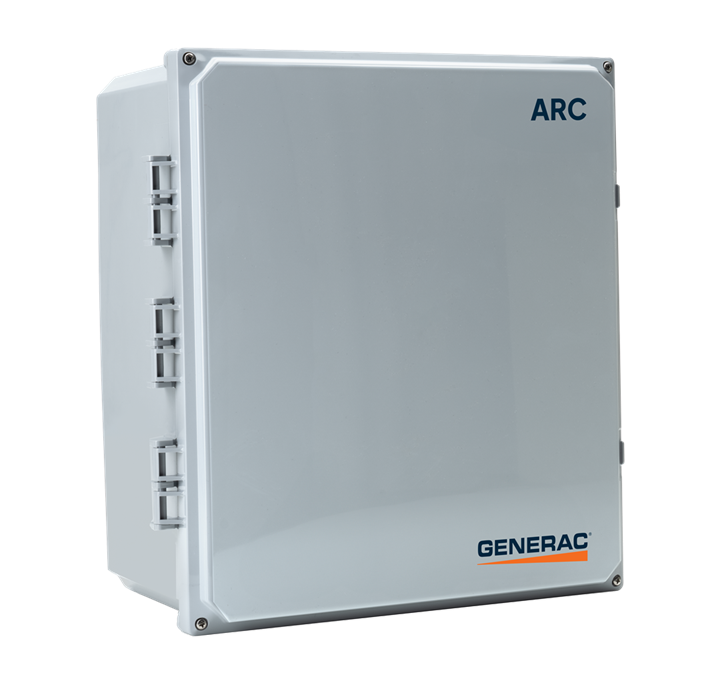

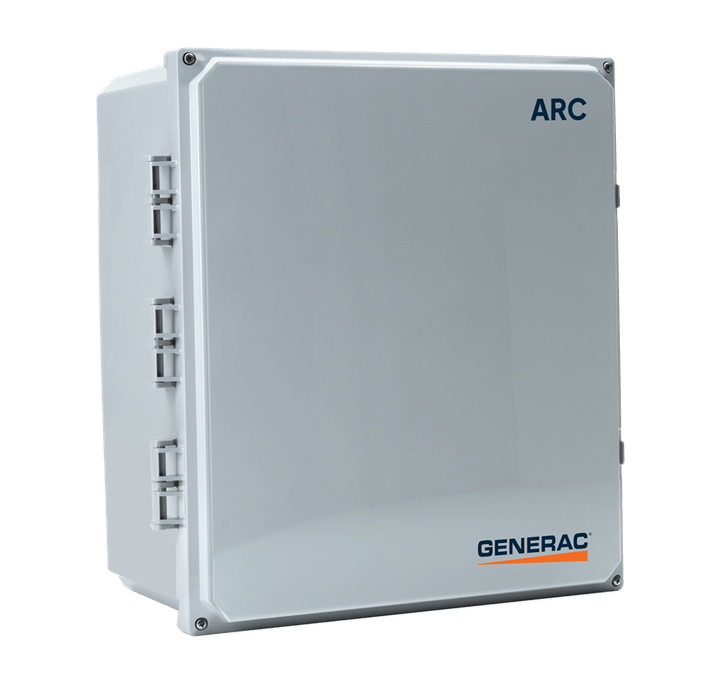

ARC Microgrid Controller
A control solution right-sized for your project
The ARC Cabinet is a lighter-weight and more compact hardware solution that runs the same ARC Software as ARC Pro.
- Efficiency meets Size: the ARC Cabinet is ideal for projects with fewer assets or reduced complexity.
- Perfect for sites with no on-site GUI requirements
Specifications
- Model: ARC
- Voltage: 100 – 240V AC Single Phase
- Frequency: 50/60 Hz
- Current Requirement: 2A @ 120V AC
- Mounting Style: Wall Mount
- Certification: UL 508A

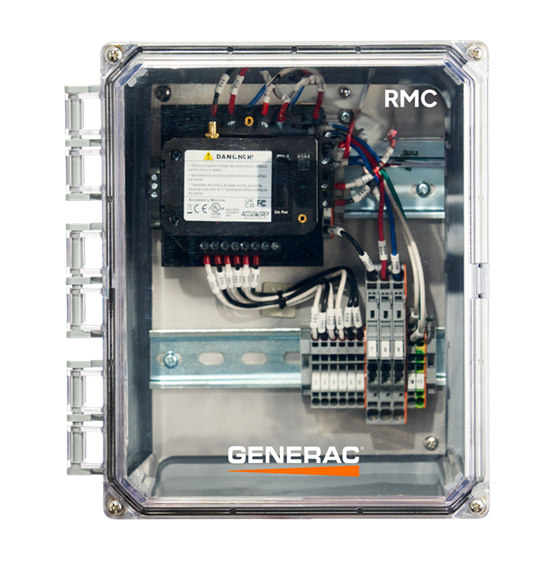

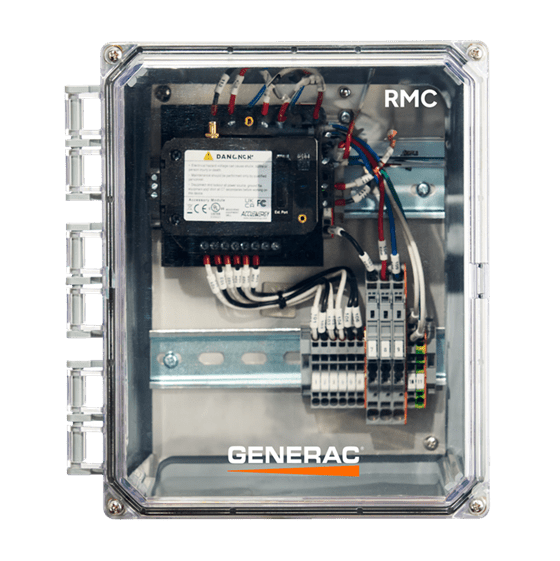

Revenue Meter Cabinet (RMC)
Power Metering Simplified
The Generac RMC integrates seamlessly with the Generac ARC, allowing for precise system metering for loads or energy sources.
- Revenue-grade power meter with accompanying current transformers ready to install at any point in your microgrid
- One-stop solution for wiring, commissioning, and troubleshooting support
- Seamless integration into your Generac control hardware ecosystem
Specifications
- Model: RMC
- Voltage: 100 – 346 VAC L-N
- Frequency: 50/60 Hz
- Current Requirement: 1A
- Mounting Style: Wall Mount
- Certification: UL 508A

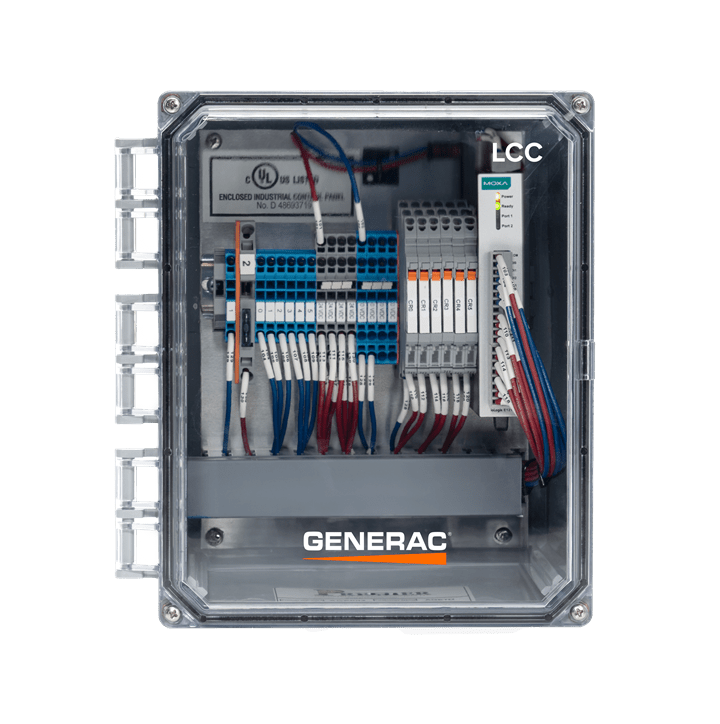

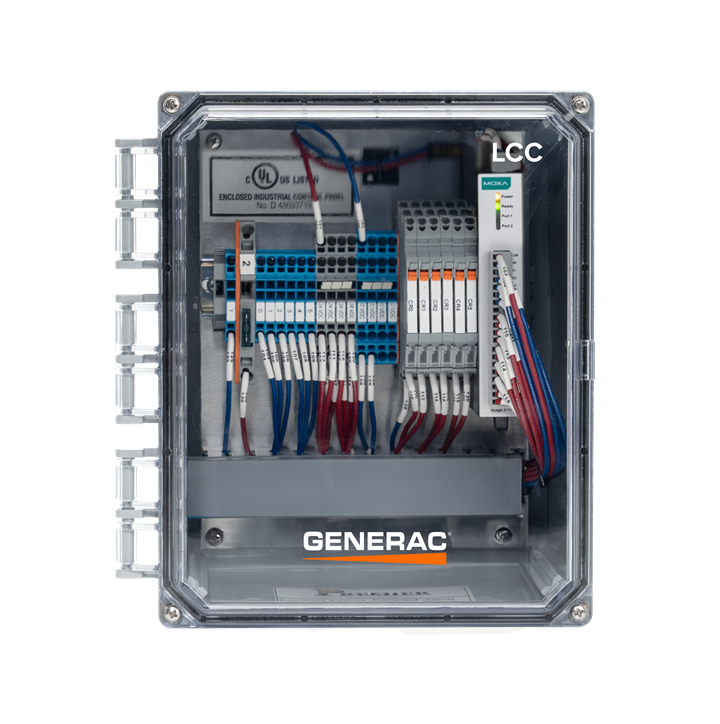

Load Control Center (LCC)
Prioritize your power flows, extend battery life
The Generac LCC is a flexible load control solution designed to extend battery life during grid outages.
- Manage up to four load groups at state-of-charge setpoints easily configurable in the Generac ARC user interface
- Send configurable discrete signals to third-party devices to indicate system status
- Simplify field installation for both new and existing builds
Specifications
- Model: LCC
- Voltage: 24 VDC
- Frequency: N/A
- Current Requirement: 2A
- Mounting Style: Wall Mount
- Certification: UL 508A

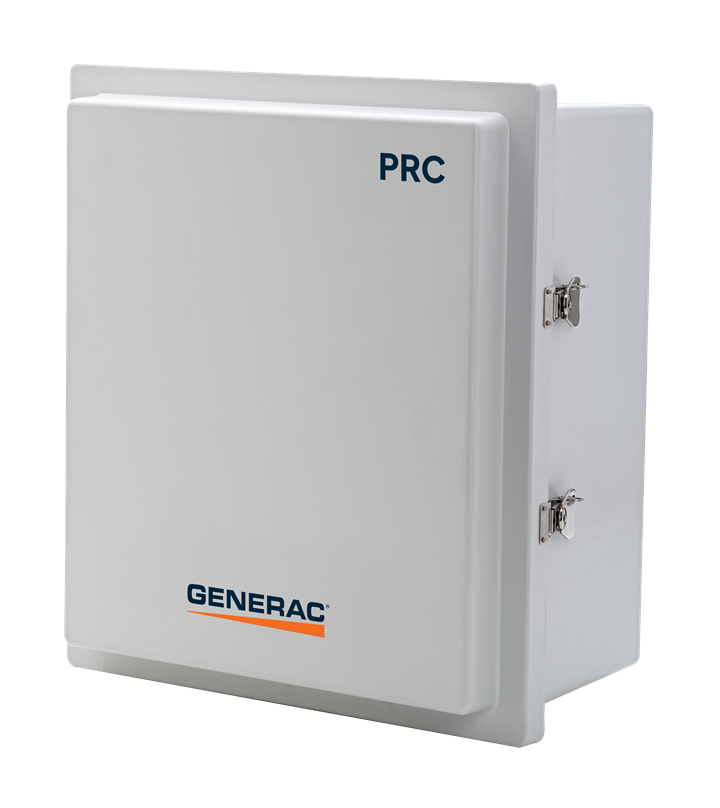

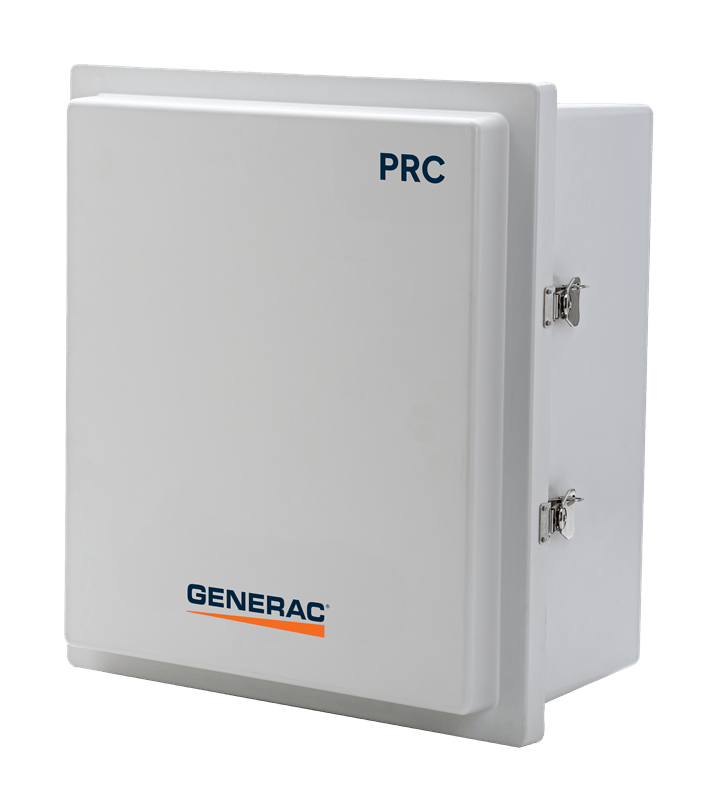

Protective Relay Cabinet (PRC)
Streamlined microgrid islanding
The Generac PRC is a ready-to-deploy microgrid islanding solution that offers grid failure detection, sub-cycle grid isolation, and protected grid
resynchronization.
- Utility-grade, industry-preferred solution programmed by the Generac microgrid experts
- Simplifies utility interconnection approval and field installation
Specifications
- Model: PRC
- Voltage: 24 VDC
- Frequency: N/A
- Current Requirement: 2A
- Mounting Style: Wall Mount
- Certification: UL 508A

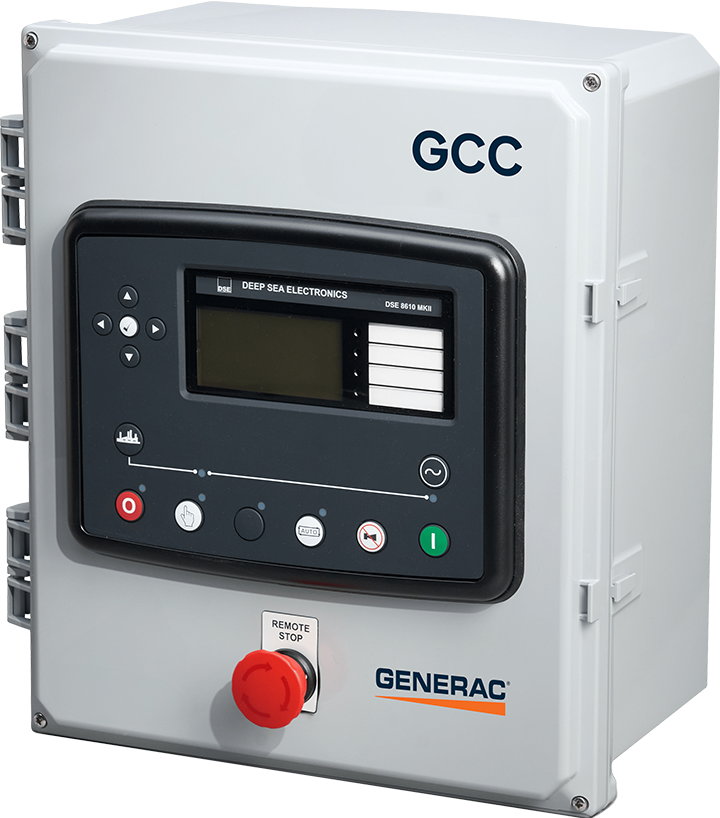

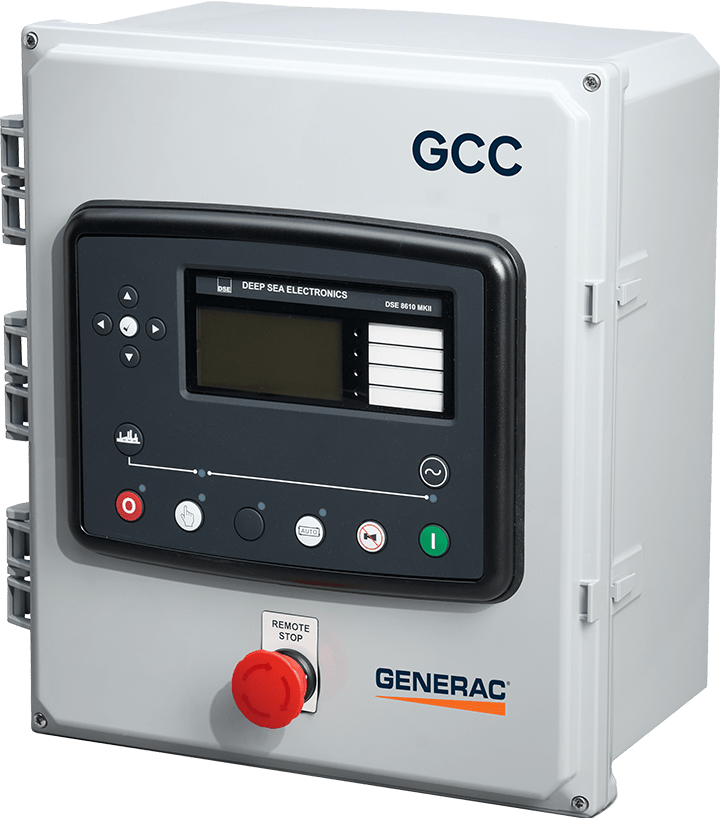

Generator Connect Cabinet (GCC)
Generator Integration Simplified
The Generac GCC is a standardized generator start/stop, synchronizing, and paralleling solution enabling generator and energy storage system (ESS) paralleling in microgrid applications.
- Parallel and cycle charge ESS with existing generator
- Avoid costly generator field upgrades
- Seamless integration into your Generac control hardware ecosystem
Specifications
- Model: GCC
- Voltage: 9 – 36 VDC
- Frequency: N/A
- Current Requirement: 5A
- Mounting Style: Wall Mount
- Certification: UL 508A
