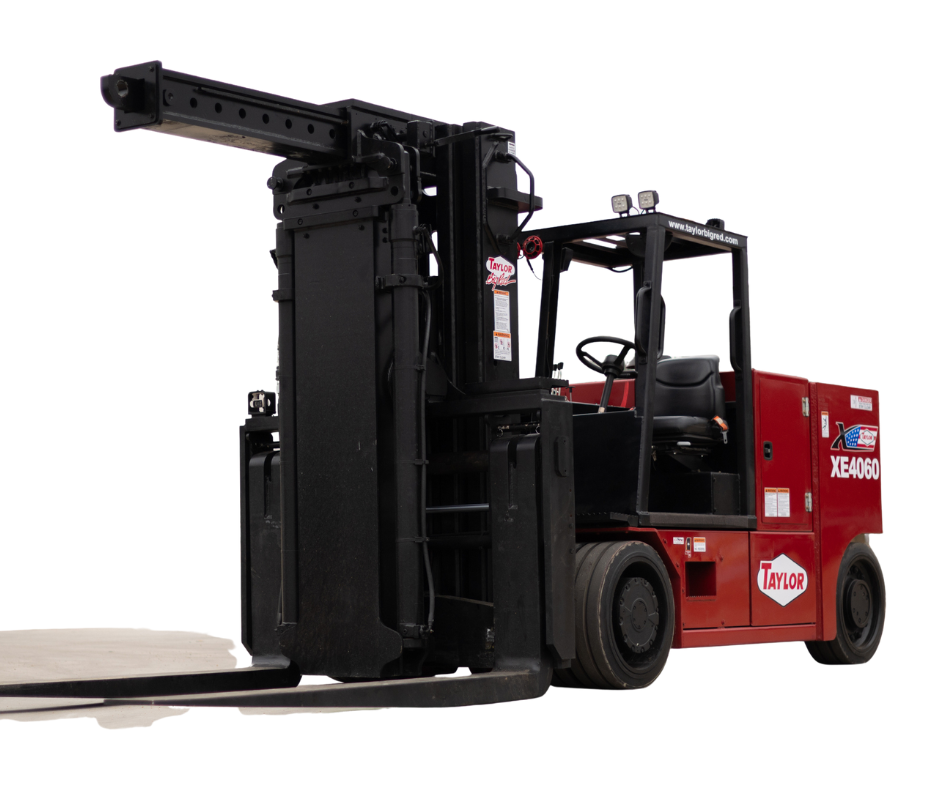

Taylor XE-4060 Heavy-Duty Rigger Forklift
Handle demanding heavy-lift and rigging applications with the Taylor XE-4060 Rigger Forklift. Featuring an innovative extendable counterweight chassis, the XE-4060 provides the maneuverability needed in confined spaces while delivering up to 60,000 lbs. of lifting capacity when the counterweight is fully extended.
Key Benefits of the Taylor XE-4060
Up to 60,000-lb. Capacity: Provides the lifting power required for heavy industrial, machinery-moving, and rigging applications.
Extendable Counterweight: Retract the counterweight for improved maneuverability in confined spaces or extend it to increase wheelbase and stability for heavier lifts.
Flexible Load Handling: Available with a carriage and forks, adjustable hydraulic lifting boom, or a combination of both to meet specific application requirements.
Heavy-Duty Hydrostatic Drive: The Rexroth hydrostatic transmission provides smooth, controlled operation and precise maneuvering.
Adjustable Counterweight: Six removable and stackable counterweight slabs allow operators to configure the truck for different lifting requirements.
Built for Heavy Industry: Designed for demanding applications in industries such as lumber, manufacturing, distribution, and heavy machinery handling.
Versatile Performance for Heavy Lifting and Rigging
The Taylor XE-4060 is designed to provide the capabilities of multiple heavy-duty material handling machines in one versatile unit. With the counterweight retracted, the truck has a 98-inch wheelbase and a rated capacity of 40,000 lbs., allowing it to maneuver more easily in confined areas. Extending the counterweight increases the wheelbase to 146 inches and provides a rated capacity of up to 60,000 lbs.
The XE-4060 is powered by a PSI 4.3L V6 LPG engine and features a Rexroth hydrostatic transmission, heavy-duty drive hubs, and a Taylor 300 welded-steel steer axle. The truck can be configured for a variety of heavy-lift applications, including machinery moving, boom rigging, and handling oversized industrial loads.
